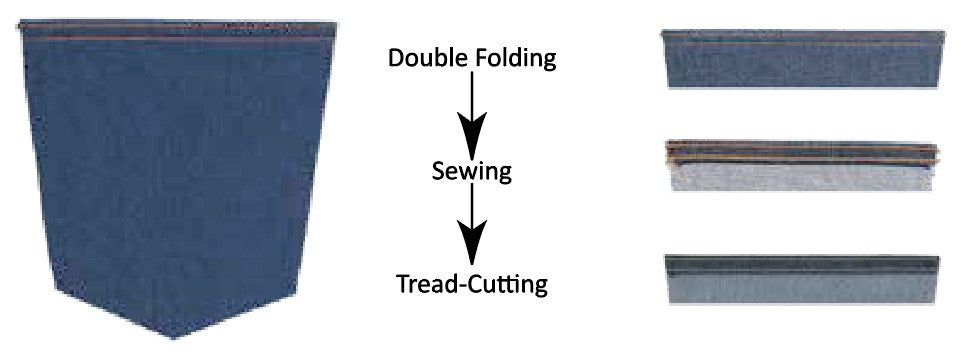

A single adjustable folder allows to realize single and double hem and change the height of the hemming in 45 Second (between 8 and 25mm).
Automatic pocket hemming machine for jeans and similar, three needles, chain stich, adjustable folder
The machine is equipped with:
Three needles chain stich sewing head with servo direct drive motor
Intermittent conveyor belt synchronized with the feed dog and powered by electronic motor
Photo sensors for fabric detecting
Sensors for thread breaking detecting
Automatic thread trimmer and vacuum system for thread waste
Rotating stacker for proper pockets stacking and collection
EMPENZO touch screen control panel for easy settng of the machine functions

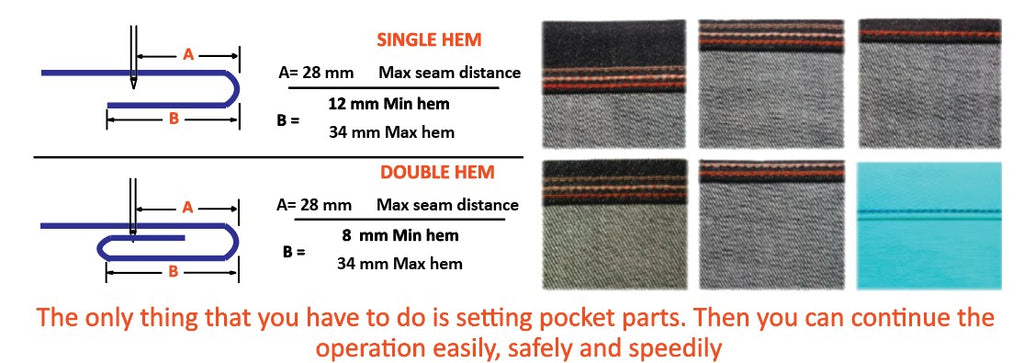

A single adjustable folder allows to realize single and double hem and change the height of the hemming (between 8 and 25mm).
The machine allows to perform the hemming on different fabric types (from the denim to the stretch) through simple sewings and without replacing any device.
The machine is also equipped with a sewing head pull back system and a conveyor belt lifting up system, to make the threading and the most common maintenance operations easy.
3 needle chain stich, servo motor
Double Servo Motor + Empenzo touch screen
|Conveyer belt synchronized whit the feed dog
|0.05 – 5.0 mm
|220 Vac – 50/60 Hz
|Max 1.5 kW
|Max 1.5 l/cycle
|Dimension and weight
|214x100x171(H) cm – 183kg
